Crash-Rated Automatic Retractable Anti-Ram “Finger Wedge” Barrier for Vehicle Access Control M50/P1 | Global GRAB RSS-2000
SKU: RSS-2000
Vendor: Global GRAB
Request a Quote Controlled Vehicle Access for Data Centers & Critical Facilities

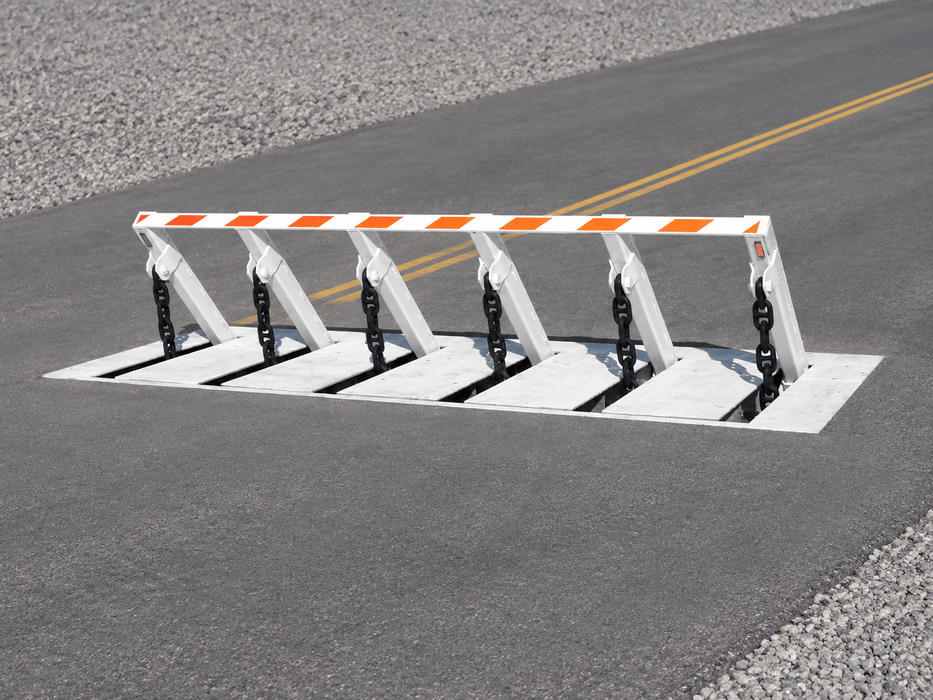

Data centers, water-treatment facilities and military installations need vehicle entrances that support authorized traffic while providing protection against forced entry. The Global GRAB RSS-2000 Electric Finger Wedge Barrier brings retractable anti-ram protection to these access points, combining electric operation with M50/P1 crash performance.
RSSI’s background in demanding federal and military applications makes the RSS-2000 a compelling option for commercial facilities with rigorous entrance-security requirements. Its finger-wedge design provides a rising physical barrier that can be coordinated with the facility’s access-control procedures.
All-Electric Operation. Retractable Protection.
The RSS-2000 uses an electric drive rather than a hydraulic lifting system. Its fingers rise into the protective position and retract to allow authorized vehicles through, making it suitable for controlled entrances where vehicle movement and security response must work together.
- Crash-certified protection: ASTM M50/P1 and Department of State K12/L3.
- Electric actuation: Operates without a hydraulic drive system.
- Shallow installation: A 24-inch below-grade installation depth supports planning around underground constraints.
- Configurable controls: PLC-based operation supports integration with the overall perimeter control system.

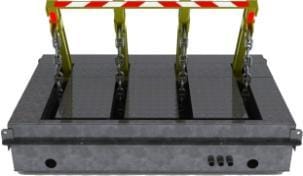

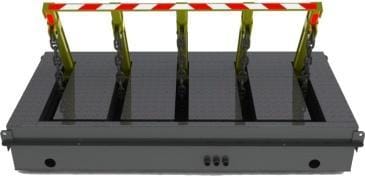

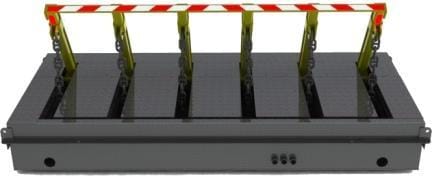

- Multiple configurations: Available with four, five or six fingers.
Specifications & Operating Performance
| Feature | Details |
|---|---|
| Model / SKU | RSS-2000 |
| Barrier Type | Automatic retractable electric finger wedge |
| Crash Certifications | ASTM M50/P1 and DOS K12/L3 |
| Normal Operation | 3 seconds to raise; 3 seconds to lower |
| Emergency Fast Operation | 1.5 seconds to raise |
| Installation Depth | 24 inches below grade |
| Available Models | 4-, 5- and 6-finger configurations |
| Published Protection Width | 8–13 feet, depending on configuration |
| Supply Condition | Factory assembled and tested |
Applications & Facility Types
- Data centers: Protect controlled vehicle entrances serving secure campuses and operational areas.
- Water-treatment facilities: Add active vehicle protection at entrances to essential infrastructure.
- Military and federal facilities: Support entrance designs with demanding anti-ram requirements.
- High-security commercial properties: Coordinate authorized vehicle access with an active physical barrier.
Plan the Entrance as Part of the Perimeter
A passive cable barrier can protect the property boundary, while the RSS-2000 addresses the vehicle entrance. This approach is particularly useful on campuses where long fence lines and a limited number of controlled access points require different types of protection.
Controls are an important part of the design. Define how vehicles are authorized, how the barrier is operated and how personnel respond to a security event before selecting the final configuration.
Coordinate Civil Work & Controls
Confirm the required protection width, installation footprint, underground conditions and control sequence during project planning. Protection width and overall equipment dimensions are different measurements; use the approved drawings for the selected model.
Configure Your Vehicle Entrance
Contact BarrierHQ with your entrance layout, required protection width and access-control requirements. We can help coordinate product selection and discuss installation, controls and ongoing service needs.
Frequently Asked Questions
Does the RSS-2000 use hydraulics?
No. The RSS-2000 uses an electric drive to raise and retract its barrier fingers.
How quickly does the barrier raise?
Published operating times are 3 seconds for normal raising and 1.5 seconds for Emergency Fast Operation. Normal lowering takes 3 seconds.
Which configuration should I choose?
Four-, five- and six-finger models are available. Selection depends on the entrance geometry and required protected width. Confirm the model and installation dimensions against the project drawings before ordering.
Can it work with the facility’s access-control system?
The PLC-controlled system supports integration into an overall perimeter control scheme. The required interfaces and operating sequence should be defined with the project’s controls team.
Can RSS-2000 be used with a perimeter cable barrier?
Yes. A passive cable system can protect the boundary while RSS-2000 controls the vehicle access point. Their placement and operation should be coordinated within the site’s security design.
