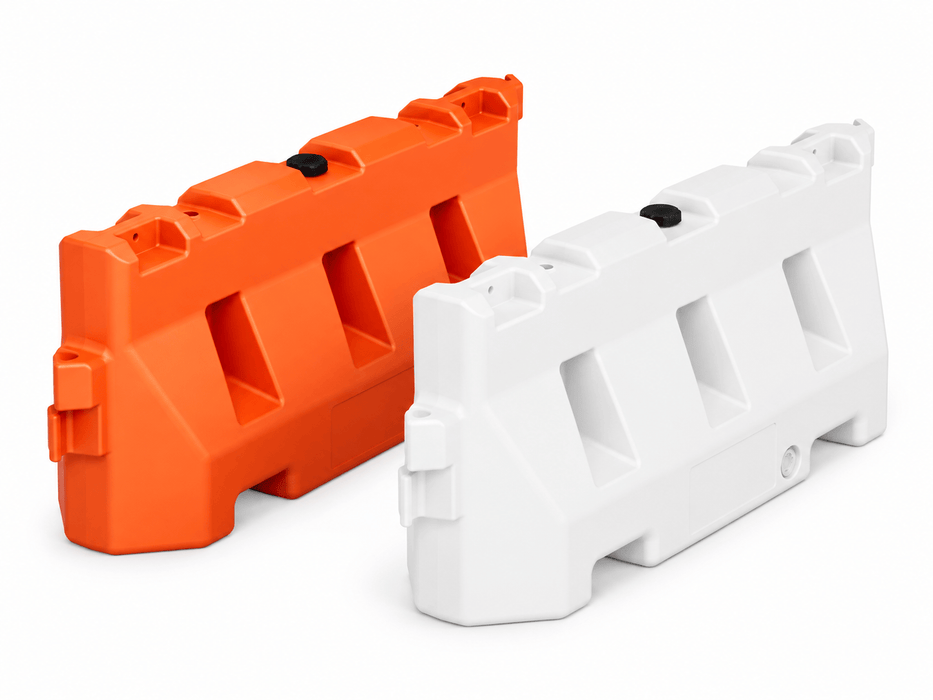

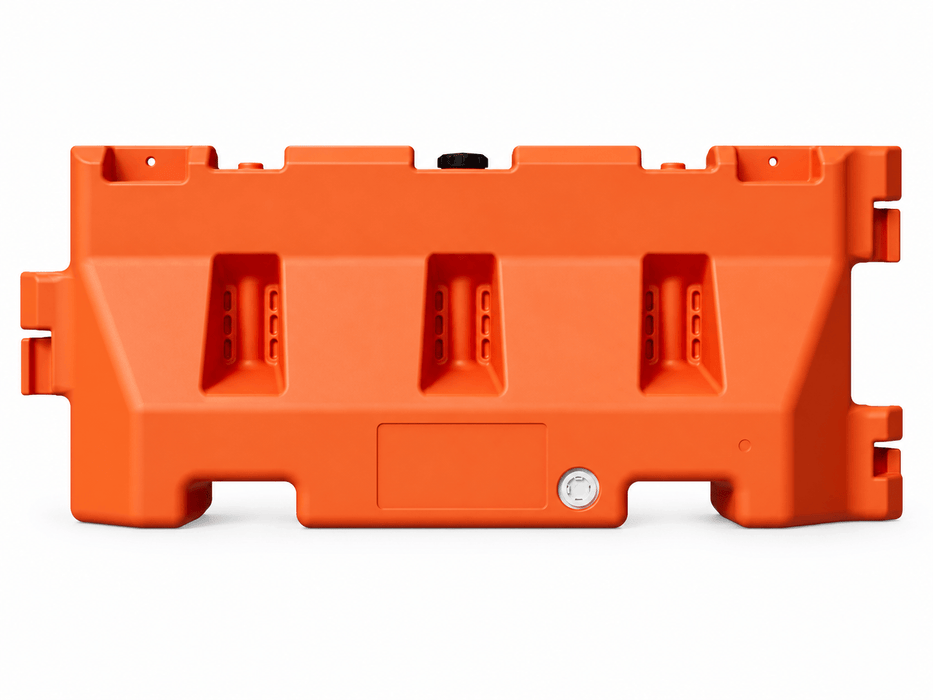

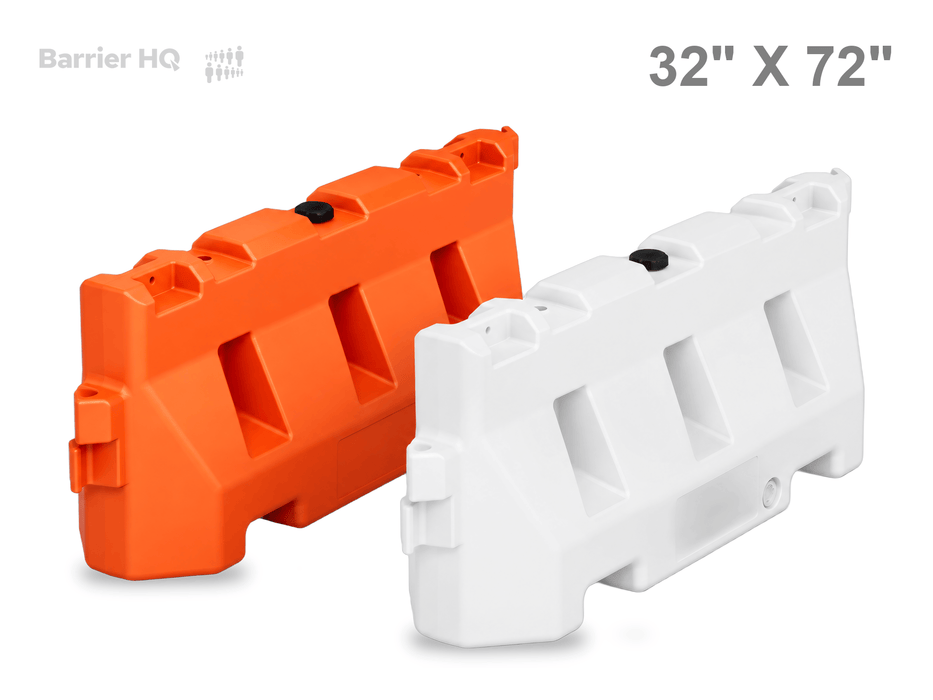

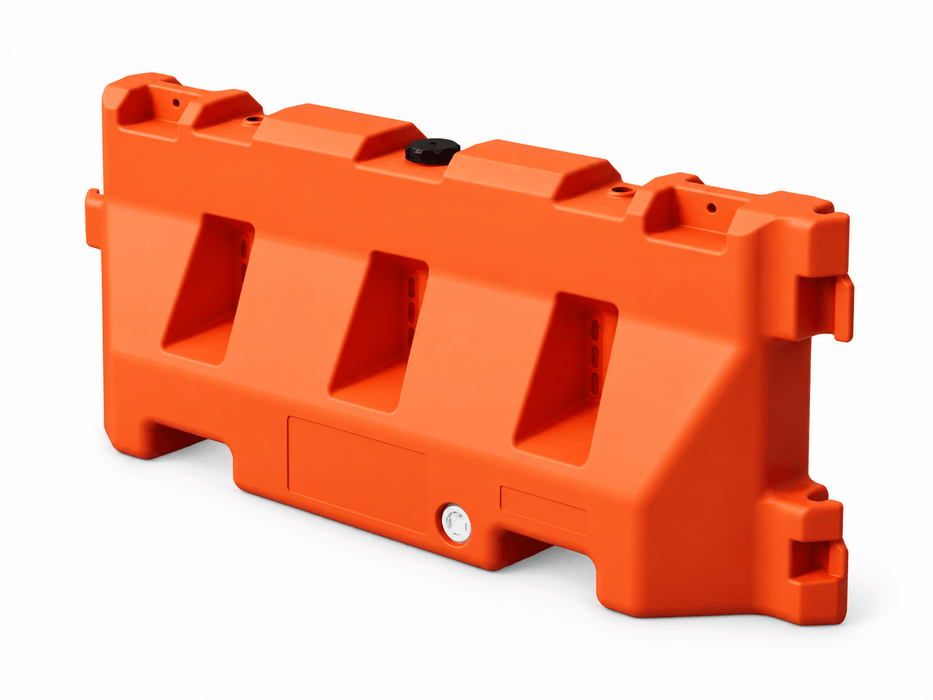

The OTW 32" x 72" Water-Filled Jersey Barrier is a heavy-duty, interlocking plastic construction barrier designed for temporary traffic control, pedestrian separation, jobsite security, and work zone channelization. Made in the USA from UV-stabilized polyethylene, this portable barrier combines lightweight handling with the stability of water ballast for commercial and industrial applications.

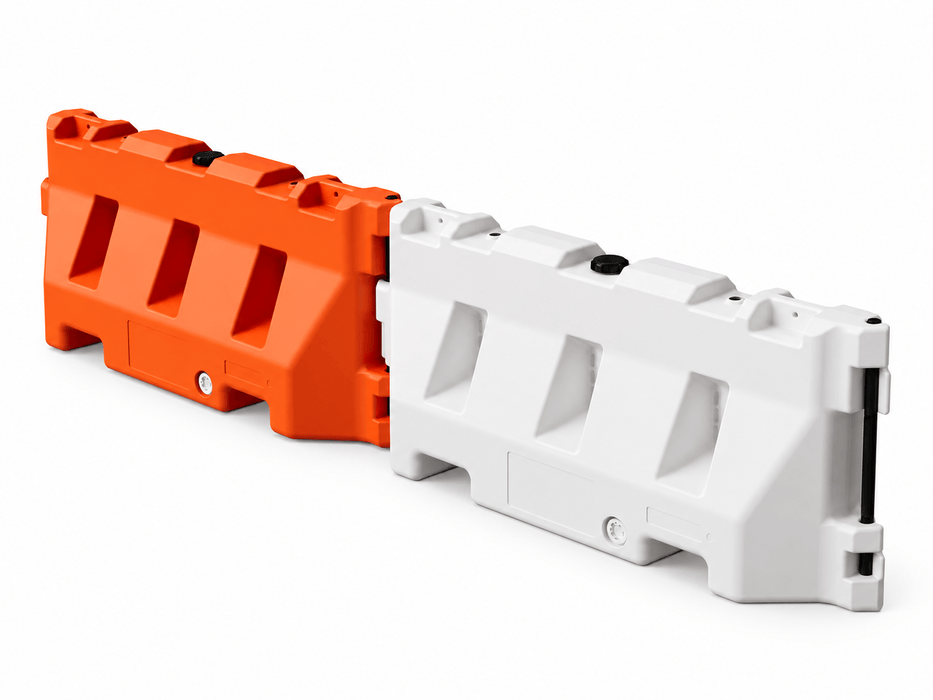

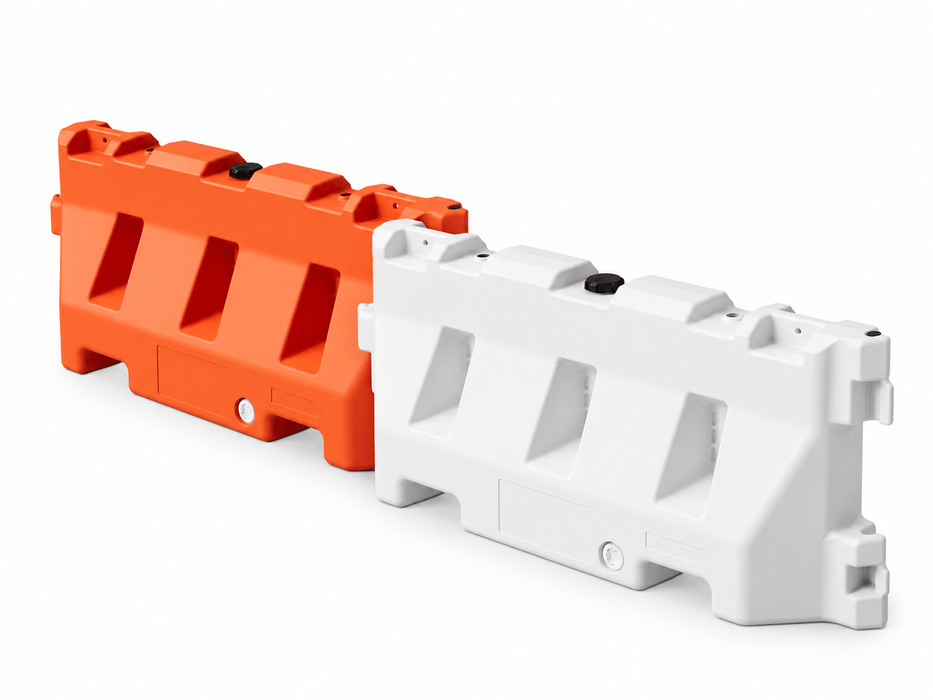

Each barrier weighs approximately 65 lbs when empty and holds up to 90 gallons of water, increasing its filled weight to approximately 820 lbs. The integrated pin connection allows adjoining barriers to form straight runs, 90-degree corners, curved layouts, and enclosed perimeters without separate corner pieces.
Key Features & Benefits
-
Water-Filled Stability: Fill with up to 90 gallons of water to increase stability after positioning.
-
Interlocking Design: Included connection pin joins adjacent barriers without tools or additional hardware.
-
Flexible Layouts: A 180-degree articulation range allows straight lines, right-angle corners, curves, and enclosed areas.
-
Durable Plastic Construction: UV-stabilized HDPE or MDPE resists outdoor exposure and helps maintain durability through repeated use.
-
Easy Handling: Approximately 65 lbs empty, allowing individual units to be positioned before filling.
-
Convenient Filling & Draining: Top-mounted fill opening and two accessible drain points simplify setup and removal.
-
Uneven-Ground Compatibility: Slotted connections accommodate approximately 3.6 inches of elevation difference between adjacent units.
-
Expandable System: Compatible with optional chain-link fence panels, temporary site access gates, warning lights, and reflective tape.
-
Made in the USA: Manufactured domestically with a one-year warranty against manufacturing defects.
Typical Applications
- Construction site perimeter control and temporary fencing
- Low-speed traffic channelization and lane delineation
- Roadwork and utility construction zones
- Pedestrian walkway separation and rerouting
- Warehouse yards, distribution centers, and industrial facilities
- Parking lot traffic management and vehicle staging
- Restricted-access areas and equipment zones
- Special events, stadiums, and temporary venue perimeters
- Infrastructure projects, data centers, and utility substations
Product Specifications
| Manufacturer |
OTW Safety |
| Product Type |
Water-Filled Jersey Barrier |
| Height |
32" (81.3 cm) |
| Length |
72" (182.9 cm) |
| Overall Length Including Hinge |
76" (193 cm) |
| Width |
18" (45.7 cm) |
| Empty Weight |
Approximately 65 lbs (29.5 kg) |
| Maximum Filled Weight |
Approximately 820 lbs (372 kg) |
| Water Capacity |
90 US gallons (340.7 L) |
| Material |
UV-Stabilized HDPE or MDPE |
| Colors |
Orange, White |
| Connection |
Interlocking Pin, Included |
| Articulation |
180° Range of Motion |
| Country of Manufacture |
USA |
| Warranty |
1 Year Against Manufacturing Defects |
Optional Accessories & Customization
-
Chain-Link Fence Panels: Increase perimeter height and create a more secure temporary construction site enclosure.
-
Temporary Site Access Gates: Add designated access points for pedestrians, workers, equipment, and authorized vehicles.
-
Barricade Warning Lights: Compatible warning lights improve barrier visibility in low-light conditions.
-
Reflective Tape: Optional orange/white reflective striping increases visibility around construction sites, traffic areas, and pedestrian walkways.
-
Custom Branding: Available customization options may include molded-in graphics and branded fence screening for construction and commercial projects.
Orange/White Reflective Tape - Available Separately
Orange/White Reflective Tape is available to purchase separately. Add reflective striping to your water-filled Jersey barriers to improve visibility in low-light conditions, construction zones, and pedestrian traffic areas.
View Reflective Tape & Pricing
Installation & Handling
Position the barriers empty, connect adjacent units using the included interlocking pins, and add water ballast according to the project requirements. The articulated connections make it possible to change directions without specialized corner sections. When the project is complete, empty the barriers through the integrated drain openings before relocation or storage.
Important: This product is intended for channelization, perimeter definition, and separation applications. Verify project-specific traffic control and crashworthiness requirements before using it in roadway environments. The 32" model is not advertised as TL-3 crash rated.
Download Spec-Sheet
