Important Product Information
- This is a swing gate conversion hardware kit. Fence panel is NOT included.
- Designed to convert one compatible temporary fence panel into a swing gate.
- Includes gate wheel, hinge hardware, and attachment hardware.
- Bolt-on design allows the gate hardware to be installed without fabricating a dedicated gate panel.
- Gate wheel supports the moving end of the panel and helps provide smooth opening and closing.
- Reusable design for construction contractors, temporary fence installers, and professional rental fleets.
Product Description
The ANTCORE-GTSW Temporary Fence Swing Gate Kit provides a simple way to convert a standard temporary chain link fence panel into a functional swing gate.
Instead of purchasing a dedicated gate panel, contractors and fence rental companies can install the ANTCORE-GTSW hardware onto a compatible temporary fence panel to create an access point within the temporary fence line.
The kit combines gate wheel, hinge hardware, and the required attachment hardware. The hinges create the pivot point for the gate panel, while the wheel supports the moving end of the panel and allows it to roll as the gate swings open and closed.
Fence panel is not included and must be ordered separately.
Convert a Standard Fence Panel Into a Swing Gate
The ANTCORE-GTSW is a conversion kit rather than a complete gate assembly. The temporary fence panel itself becomes the gate after the swing-gate hardware is installed.
This provides additional flexibility for contractors and professional fence rental companies that already maintain an inventory of temporary fence panels. Standard panels can be converted into gates when required for a project and later returned to other temporary fencing applications.

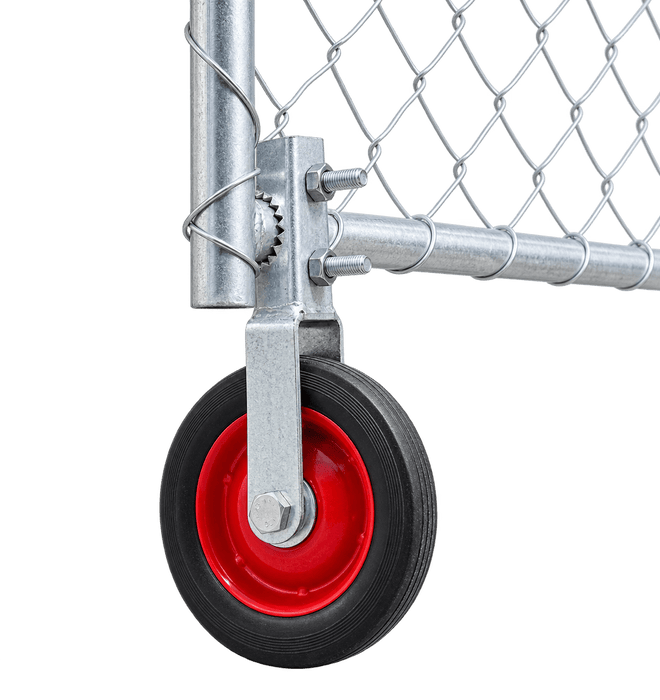

Gate Wheel
The gate wheel supports the moving side of the fence panel and allows the panel to roll as the gate swings. Supporting the moving end of the panel helps reduce stress on the gate hinges while providing smoother gate operation.
The gate wheel uses a solid rubber wheel and hot-dip galvanized steel bracket designed for repeated professional use. The wheel assembly uses bolt-on hardware for installation onto the temporary fence panel.
Gate Hinges
The hinge hardware creates the pivot point between the swing gate and the adjoining temporary fence structure.
The hinges are manufactured from hot-dip galvanized steel and use a bolt-on clamp design, providing a durable connection while allowing the temporary fence panel to operate as a swing gate.
Reusable Modular Design
The ANTCORE-GTSW uses bolt-on temporary fence hardware, allowing the gate configuration to be dismantled and the components reused on future projects.
This modular design is particularly useful for construction companies, temporary fence installers, commercial projects, event operators, and professional fence rental fleets that regularly install, remove, transport, and reconfigure temporary perimeter systems.
Applications
- Construction site entrances
- Temporary vehicle access
- Equipment access
- Delivery entrances
- Pedestrian access
- Commercial and industrial projects
- Temporary controlled-access areas
- Professional fence rental fleets
Technical Specifications
| Product Code |
ANTCORE-GTSW |
| Product Type |
Temporary Fence Swing Gate Conversion Kit |
| Gate Configuration |
Single Swing Gate |
| Panels Converted |
1 Temporary Fence Panel |
| Fence Panel Included |
No - Sold Separately |
| Gate Wheel Included |
Yes |
| Hinge Hardware Included |
Yes |
| Attachment Hardware Included |
Yes |
| Gate Wheel |
Solid Rubber |
| Wheel Bracket |
Hot-Dip Galvanized Steel |
| Hinge Material |
Hot-Dip Galvanized Steel |
| Installation |
Bolt-On |
| Operation |
Swing |
| Reusable |
Yes |
| Primary Use |
Converting a Temporary Fence Panel Into a Swing Gate |
Note: ANTCORE-GTSW is a hardware conversion kit. The temporary fence panel is not included and must be purchased separately. Exact hardware quantities may vary by kit configuration.
