Ordering & Shipping Information
Sold as an individual post. Couplers (ANTCORE-CLAMP) are required for installation and sold separately: 4 per post.
Product Description
Lock your temporary fence line into the ground. The ANTCORE-POST8 8' In-Ground Post is driven 2' into the soil, leaving 6' above grade to line up with 6' temporary chain link fence panels. Use it as a driven line post between panels, or add it mid-panel as a wind brace on exposed, screened, or long-term job sites.
How It Works
-
Mark your line. Set out your ANTCORE-600 panels where the fence will run.
-
Drive the post. Drive the post 2' into the ground with a manual or powered post driver. That leaves 6' above grade, the same height as a 6' panel.
-
Attach the panels. Clamp the panel frames to the post with 4 ANTCORE-CLAMP couplers.
-
Check the line. Make sure the panels are plumb and the couplers are tight before you hang privacy screen or signs.

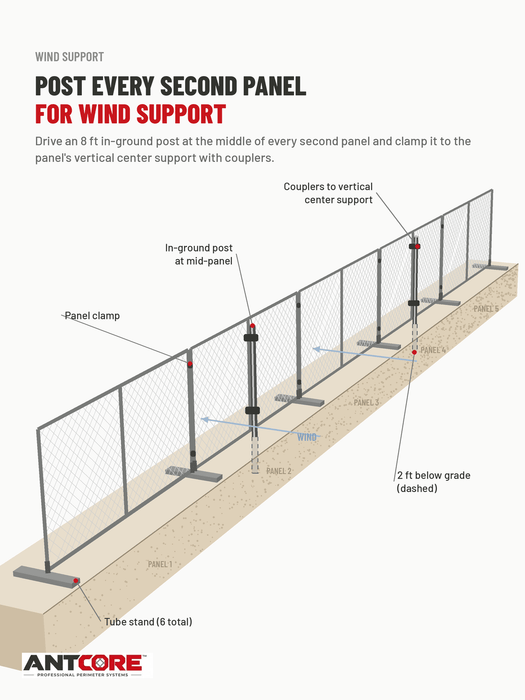

Wind Bracing: The Most Common Use
Privacy screen and banners turn a fence line into a sail. To stiffen a run, drive one post at every second panel, at the middle of the panel, and clamp it to the panel's vertical support tube with couplers. The post adds a fixed anchor point in the ground along the fence line. This is how most of our customers use it: as extra stability for screened or windy sites.

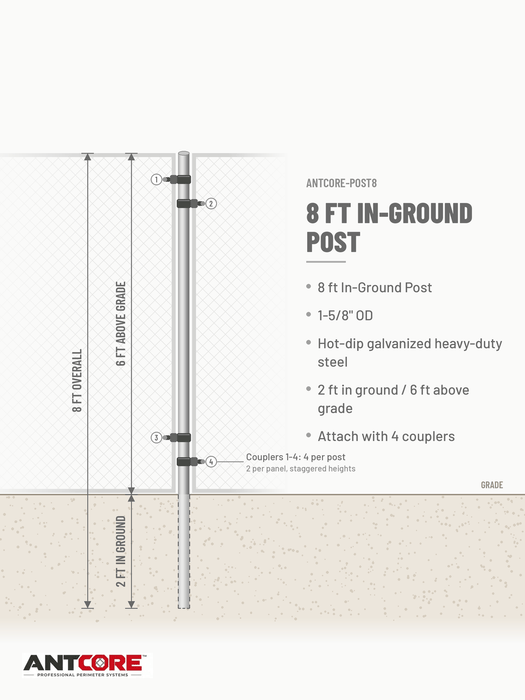

Specifications
| Product code |
ANTCORE-POST8 |
| Overall length |
8' (96") |
| Embed depth |
2' (24") |
| Height above grade |
6', matches 6' panels |
| Outside diameter |
1-5/8" |
| Material |
Heavy-duty steel, hot-dip galvanized |
| Couplers per post |
4 ANTCORE-CLAMP (sold separately) |
| Compatible panels |
ANTCORE-600 (6' × 12') |
What's Included
1 × ANTCORE 8' In-Ground Post.
Sold separately: ANTCORE-CLAMP couplers, ANTCORE-600 panels, ANTCORE-STAND tube stands, and privacy screen.
FAQ
How deep does the post go into the ground?
2'. The 8' post then stands 6' above grade, level with a standard 6' temporary fence panel.
How many couplers do I need?
4 ANTCORE-CLAMP couplers per post.
How many posts do I need for wind support?
Most customers drive one post at every second panel, at mid-panel, clamped to the panel's vertical support tube. On very exposed sites you can add more.
Can I use it with 8' panels?
This post is sized for 6' panels. Contact us at BarrierHQ.com for 8' fence applications.
Before you drive: always call 811 to have underground utilities located before driving any post.
