Download Spec-SheetSliding Vehicle Gate Kit for Temporary Fence
Enhance your temporary fencing with the Sliding Vehicle Gate Kit from BarrierHQ. Available in both single and double-panel configurations, this kit converts standard 6 ft temporary fence panels into smooth-sliding vehicle access gates. It provides secure and efficient entry for construction sites, events, utilities, and public works projects.
Built from pre-galvanized steel and finished with a tough powder coat, the kit offers excellent resistance to rust, abrasion, and weathering. With durable components designed for frequent operation, this system is ideal for high-traffic access points or areas with limited swing clearance.
Why choose this sliding gate kit?

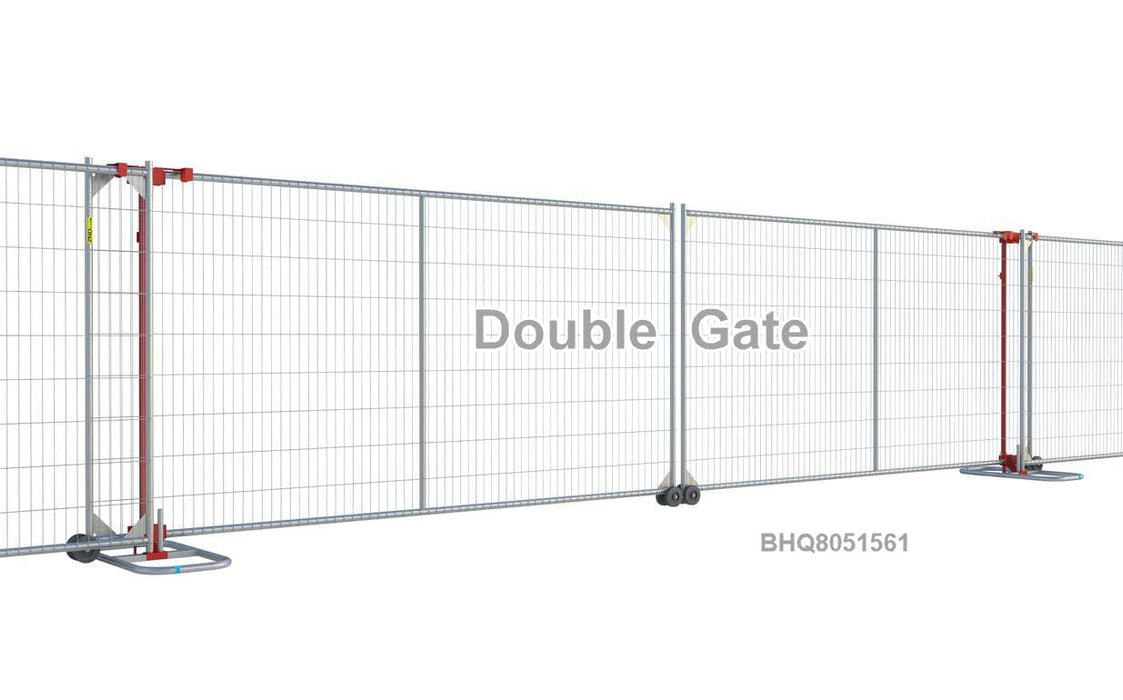

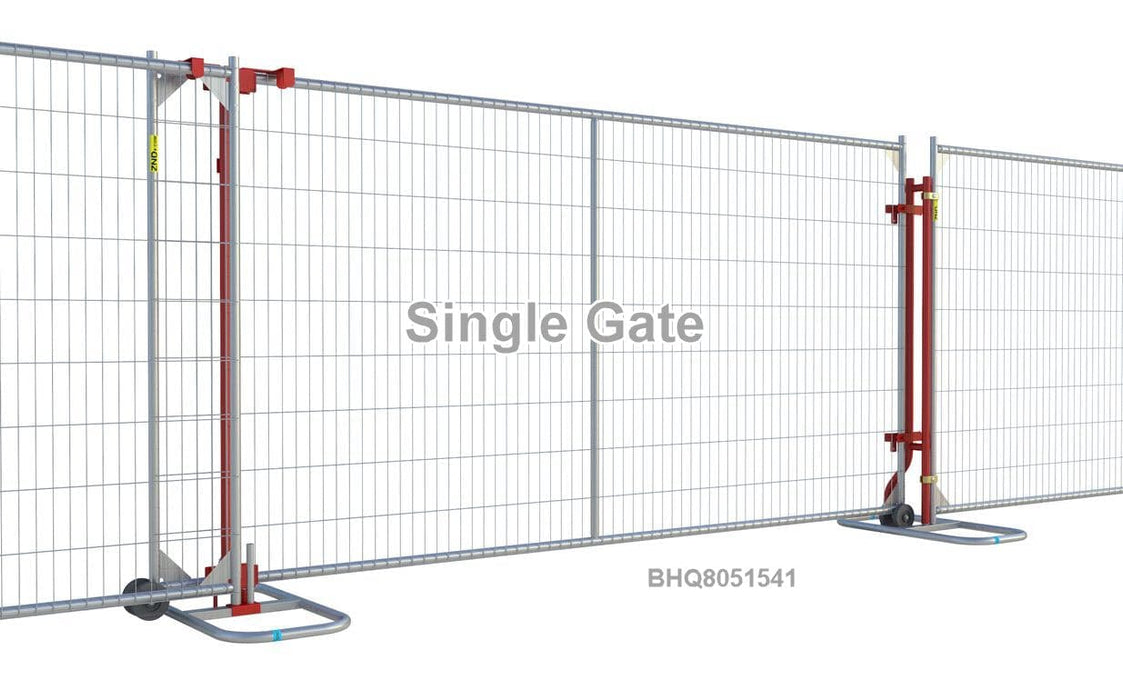

- Flexible options: Available for single-panel or double-panel sliding gates.
- Durable construction: Pre-galvanized steel with powder-coated finish for long-term performance.

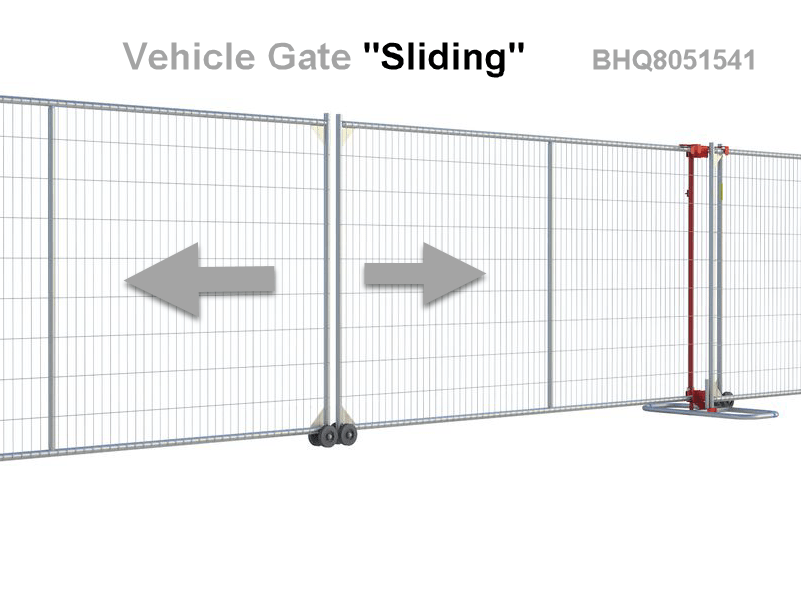

- Smooth sliding action: Engineered for easy, reliable operation on busy job sites.
- Space-saving: Sliding design eliminates the need for swing clearance, ideal for tight or high-traffic areas.
- Easy installation: Each kit includes mounting hardware, guides, and a technical assembly drawing.
What’s included
- Sliding gate bracket assembly
- Mounting hardware (bolts, washers, fasteners)
- Top and bottom guide components
- Assembly instructions and technical drawing
Recommended uses
- Construction site vehicle entry points
- Event and festival access management
- Utility and public works projects
- Temporary road and lane closures
Technical specifications
| Compatible Panel Width | 6 ft temporary fence panels, (a "Rolling Vehicle Gate for Temporary Fence can be used on both 6' & 8 ft fence. |
|---|---|
| Configuration Options | Single or double sliding panels |
| Material | Pre-galvanized steel, powder-coated finish |
| Approx. Weight | 29.5 kg (single panel kit) |
| Includes | Bracket assembly, mounting hardware, guides, assembly manual |
| Best For | Construction, events, utilities, and traffic control projects |
Not sure whether a single or double configuration works best for your site? Contact our sales team for guidance and to receive a tailored freight quote.
Sliding Vehicle Gate Kit Technical Drawing
Sliding Vehicle Gate Kit Assembly Guide Here
This kit contains everything you need to convert a panel into a sliding gate. Turn two panels into a double sliding gate. Works with both 6ft and 8ft panels.
Crowd control barrier packaging options: assembled or disassembled?
Shipping disassembled - knocked-down (most popular).
Most barriers are packaged 2 in a box, when you receive the shipment you will have to twist the pole in to the base, instructions will be inside the box, usually no tools required.
Shipping assembled.
We can ship posts fully assembled in the factory, there is a small charge for it, but you don’t have to do anything else just unpack it at the location. A small portion of our barriers can only be shipped assembled.
- Shipping cost to ship SMALL orders (up to 25 posts) assembled will be 2 to 3 times higher, because the box will become very large and carriers will charge so called “dimensional weight”. Example: to ship two 25 Lbs post disassembled posts in 1 box, the billable weight is 50 Lbs for both posts, to ship them assembled - each post will be boxed individually in a 42x15x15" box, each box actual weight is 26 Lbs, but the “dimensional” - billable weight is 57 Lbs each, or 114 Lbs.
- Shipping cost to ship LARGE orders (25 or more assembled posts) will be virtually the same. Large heavy orders are being shipped using the most economical method - LTL, boxes are shipped on pallets, the dimensional weight is not applicable in this case. For more details click here
Notes:
- Large order shipping cost has to be calculated and quoted manually after you place your order.
- We can always use your carrier to ship, the shipping charge from us will be $0, you will be charged by your carrier depending to your rates.
"Free Shipping" packaging options:
Products that are sold with “Free shipping” are shipped “Knocked-down”, if you select “Assembled” a shipping charge will be added in addition to the $9 packaging fee. If your order is for 25 post or more and ships LTL, no extra shipping is charged. For more packaging information click here<- Return to main page "Shipping-and-Returns"
