Water-filled "Guardsafe 36" LCD Barriers 36"H x 72"L

Original price $479.00 - Original price $479.00
Original price
$479.00
$479.00 - $479.00
Current price $479.00
SKU: REMGS36
Vendor: Remcon

Remcon Guardsafe 36 Water-Filled LCD Barricade

Bring order to temporary routes and restricted areas with the Remcon Guardsafe 36 water-filled barricade. Measuring 36 inches high by 72 inches long, this polyethylene channelizing device creates a visible boundary for construction sites, pedestrian routes, checkpoints, and crowd-control layouts.

Connected sections can turn up to 90 degrees using a swivel-pin design, making it possible to follow corners and changing site boundaries. Position the barricades before adding water or sand ballast, then drain water when the layout needs to change.

Connected Layouts for Straight Runs and Corners

The Guardsafe 36 connects individual units into a continuous line. Its swivel-pin system accommodates straight sections, gradual curves, and turns of up to 90 degrees, giving crews flexibility when defining routes around the available space.

  • Construction sites: Outline work areas and designated access routes.
  • Pedestrian routing: Guide foot traffic around temporary closures and restricted spaces.
  • Checkpoints: Organize approaches to controlled entry points.
  • Crowd control: Establish visible boundaries along designated public routes.

Accessible Fill Ports and Built-In Handling Features

Each barricade weighs 70 pounds empty and includes molded-in recessed handles to assist with positioning. A large threaded top fill port accepts water or sand ballast, while two bottom drain plugs allow water to be released before relocation.

These practical features support repeated deployment as access points, work areas, and temporary routes change throughout a project.

Outdoor Durability and Visibility Options

Rotationally molded polyethylene resists cracking, denting, harsh weather, and ultraviolet exposure. Bright color options help distinguish the barricade line from its surroundings.

  • Two molded-in top pockets accept standard blinking warning lights.
  • Flat side surfaces accommodate reflective striping.
  • Recessed handles provide handholds without projecting from the body.
  • Reusable polyethylene construction supports repeated outdoor use.

MASH TL-1 Longitudinal Channelizing Device

Remcon identifies the Guardsafe 36 as FHWA eligible under MASH TL-1 as a Longitudinal Channelizing Device (LCD). It is intended for visible channelization in temporary traffic-control applications.

Guardsafe 36 Specifications

Specification US Measurement Metric Measurement
Height 36 in. 91.44 cm
Length 72 in. 182.88 cm
Width 24 in. 60.96 cm
Empty Weight 70 lb. 31.75 kg
Material Rotationally molded polyethylene
Connection System Swivel pin; turns up to 90 degrees
Ballast Options Water or sand
Drainage Dual bottom drain plugs
Warning-Light Pockets Two molded-in top pockets

Guardsafe 36 Design Details

Remcon combines flexible connections, ballast access, and visibility features in a barricade designed for changing site layouts. The product image below provides a closer look at the Guardsafe 36.

Remcon Guardsafe 36 polyethylene water-filled barricade

Guardsafe 36 Barricade Color Options

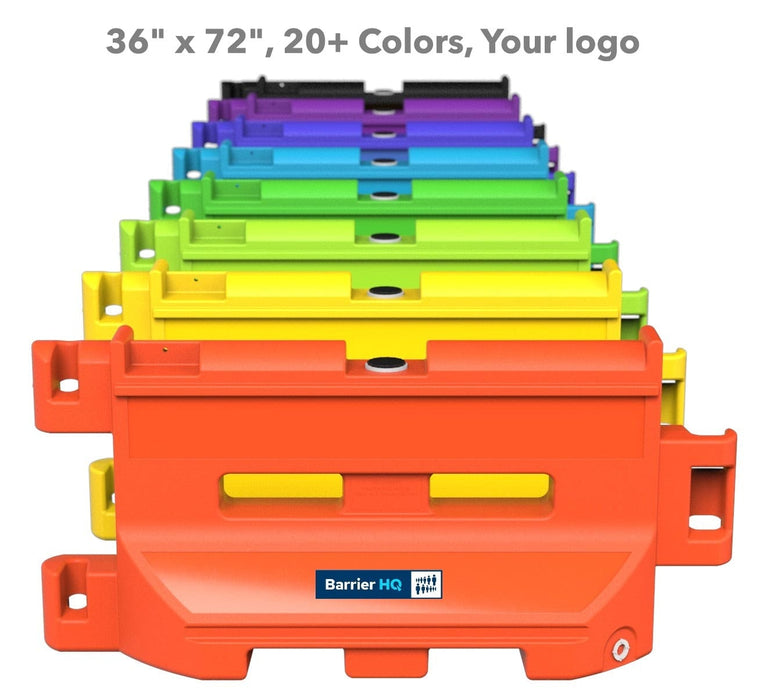

Compare orange, natural, and yellow Guardsafe 36 barricades below. Each listed option measures 36 inches high by 72 inches long. Use the product codes to identify the color required for your order.

Color options for Remcon Guardsafe 36 water-filled LCD barricades

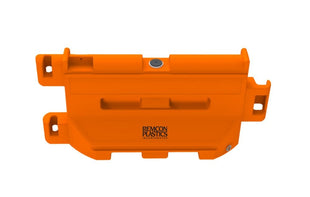

Orange Remcon Guardsafe 36 water-filled barricade

Orange Guardsafe 36

Product code: 17003672REM055

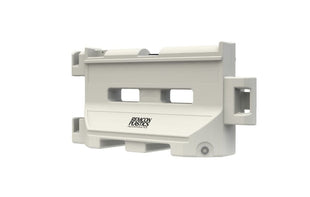

Natural-color Remcon Guardsafe 36 water-filled barricade

Natural Guardsafe 36

Product code: 17003672REM850

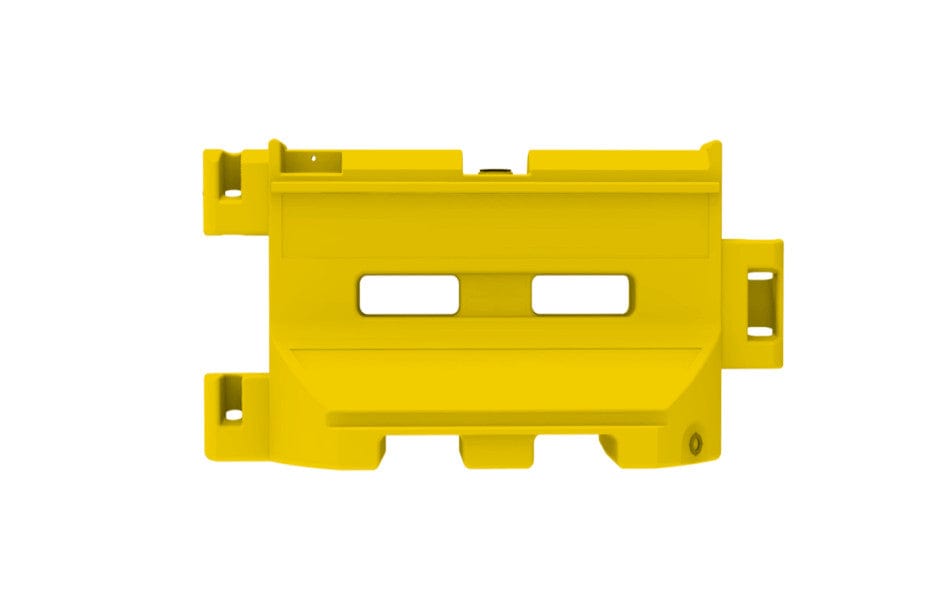

Yellow Remcon Guardsafe 36 water-filled barricade

Yellow Guardsafe 36

Product code: 17003672REM253

Fence Topper Installation Instructions

Adding a fence topper panel? Refer to the Guardsafe 36 fence topper installation instructions (PDF) for assembly guidance.
