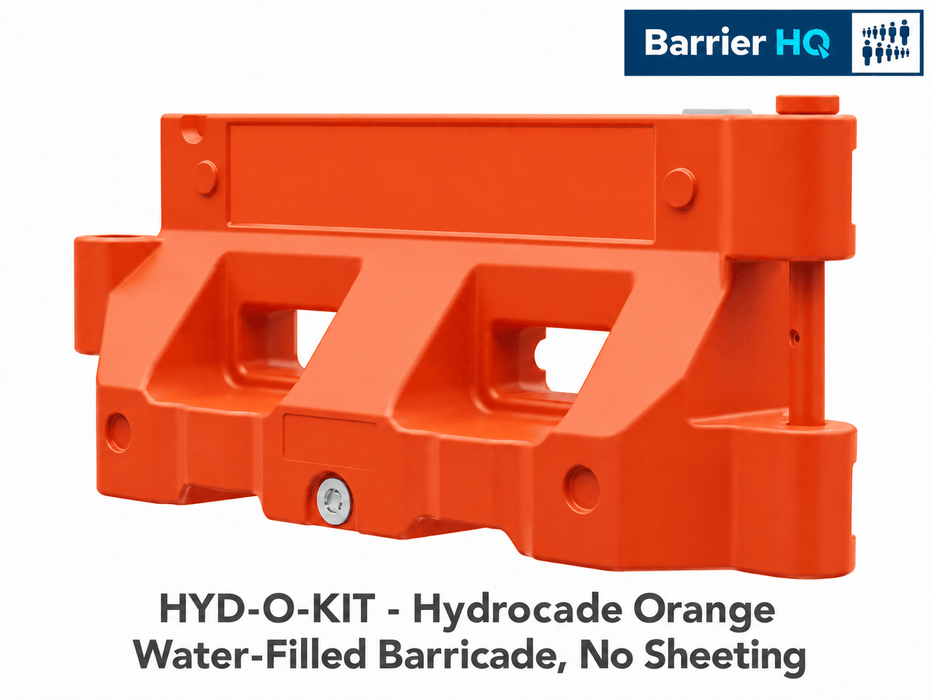

The Plasticade Hydrocade Orange Water-Filled Barricade, No Sheeting (HYD-O-KIT) is the plain, safety-orange version of the Hydrocade TL-3 longitudinal channelizing device. Orange is the color crews and drivers expect in a work zone, and the molded body is visible without any added reflective sheeting.
Use HYD-O-KIT to channel traffic and pedestrians around road work, utility cuts, and staging areas. Set it out empty at 67 lbs, join each unit with the included connector pin, and fill it with water on site. The two 44" x 8" sheeting areas stay blank, so you can add your own sheeting later or keep a clean orange face. The flat, obstruction-free side faces pedestrians to reduce trip hazards. The line turns 90° and adjusts to curbs up to a 6° incline.
Hydrocade Specifications
-
Manufacturer: Plasticade
-
Model / SKU: HYD-O-KIT
-
Color: Safety Orange
-
Reflective sheeting: None (plain barricade; 44" x 8" sheeting areas on both sides left blank)
-
Size: 72" L x 32" H longitudinal channelizing device (72" connected length); overall 79" L x 17.5" W x 32" H, 8" top width
-
Material: medium density polyethylene (MDPE), 0.25" nominal wall
-
Weight: 67 lbs empty; 745 lbs deployed when filled with 81.24 gallons of water
-
Crash testing: crash tested for TL-3 MASH acceptance (submitted to FHWA); meets MUTCD standards
-
Includes: connector pin that snaps onto the barricade center for storage and transport
-
Handling: two forklift access areas, stacking lugs, 8 units per pallet / 200 units per truck
The Hydrocade is a longitudinal channelizing device, not a barrier. Do not use it where a re-directive device is required.
