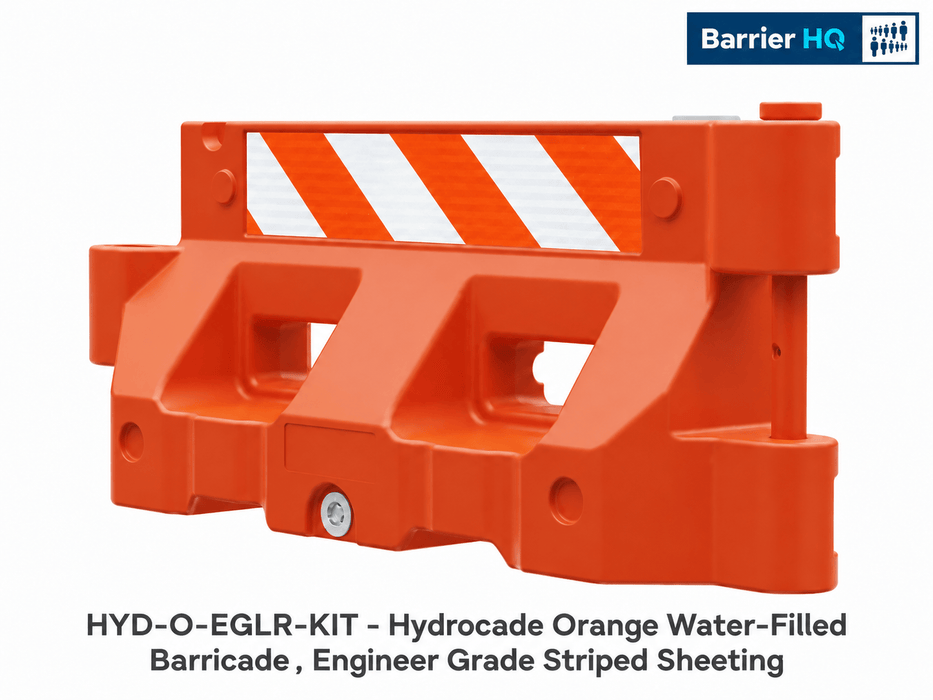

The Plasticade Hydrocade Orange Water-Filled Barricade, Engineer Grade Striped Sheeting (HYD-O-EGLR-KIT) ships with Engineer Grade retroreflective striped sheeting already applied to the 44" x 8" panels on both sides. You get a safety-orange body plus striping that shows up in headlights, ready for everyday work zones.
Engineer Grade sheeting is an economical, practical choice for general work zones, city streets, parking areas, and lower-speed lane closures. Because the striping is on both faces, the line reads the same from either direction. Each unit weighs 67 lbs empty, links to the next with the included connector pin, and fills with 81.24 gallons of water once it is in position. A light ledge accepts a standard barricade light if the job needs one.
Hydrocade Specifications
-
Manufacturer: Plasticade
-
Model / SKU: HYD-O-EGLR-KIT
-
Color: Safety Orange
-
Reflective sheeting: Engineer Grade retroreflective striped sheeting, 44" x 8" on both sides
-
Size: 72" L x 32" H longitudinal channelizing device (72" connected length); overall 79" L x 17.5" W x 32" H, 8" top width
-
Material: medium density polyethylene (MDPE), 0.25" nominal wall
-
Weight: 67 lbs empty; 745 lbs deployed when filled with 81.24 gallons of water
-
Crash testing: crash tested for TL-3 MASH acceptance (submitted to FHWA); meets MUTCD standards
-
Includes: connector pin that snaps onto the barricade center for storage and transport
-
Handling: two forklift access areas, stacking lugs, 8 units per pallet / 200 units per truck
The Hydrocade is a longitudinal channelizing device, not a barrier. Do not use it where a re-directive device is required.
