Download Spec-SheetModular Fence System for Water-Fillable Crowd Control Units
Our modular fencing system is designed to enhance security and crowd control when used in conjunction with water-fillable barricade units. Please note: fencing components must only be installed on level ground, and barricade units must be fully filled with water to ensure stability and safe operation when fencing is attached.
Fence Parts Included:
-
Post (Part #568)
Dimensions: 96 inches in length with a 1.66-inch diameter
Constructed from durable steel tubing, the post serves as the vertical support structure for the fence panels. Its length allows for secure embedding in the mounting sockets of compatible barricade units. -

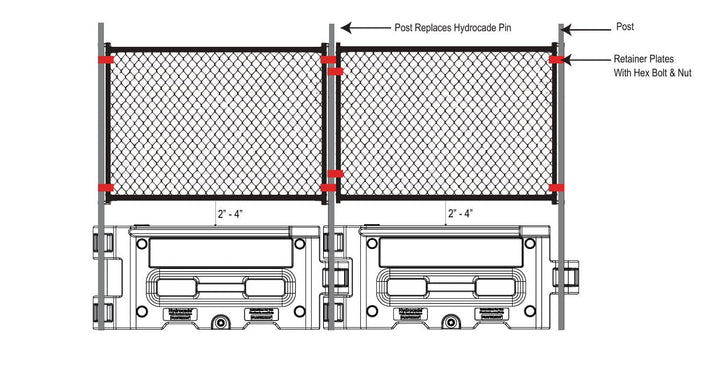

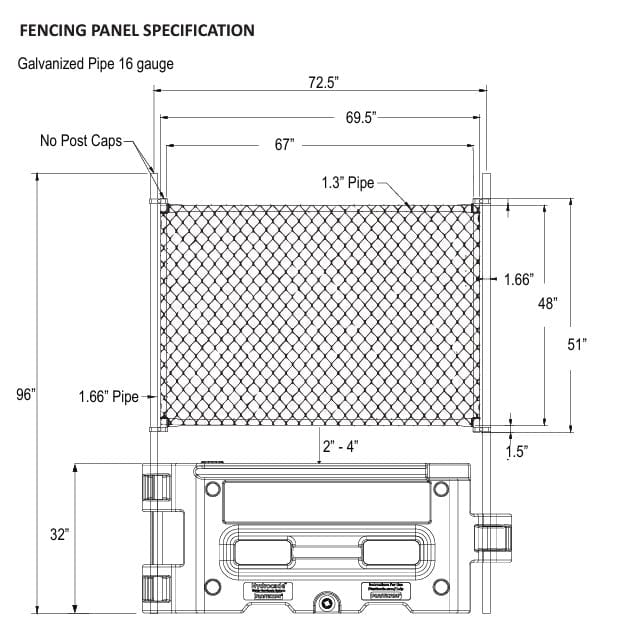

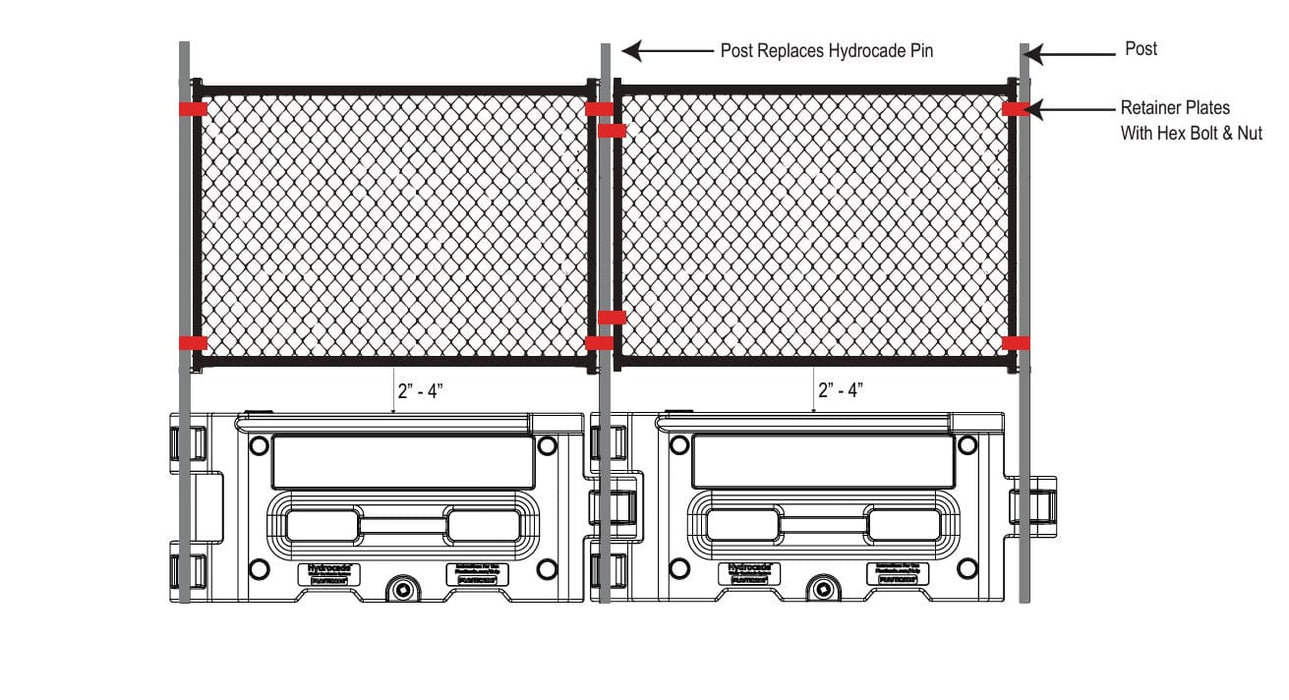

Fence Panel (Part #569)
Dimensions: 67 inches wide by 51 inches high with a 1.3-inch diameter frame
This panel features a rigid tubular frame designed to connect seamlessly between posts, forming a continuous barrier. The size is optimized for visibility and crowd management while maintaining portability. -

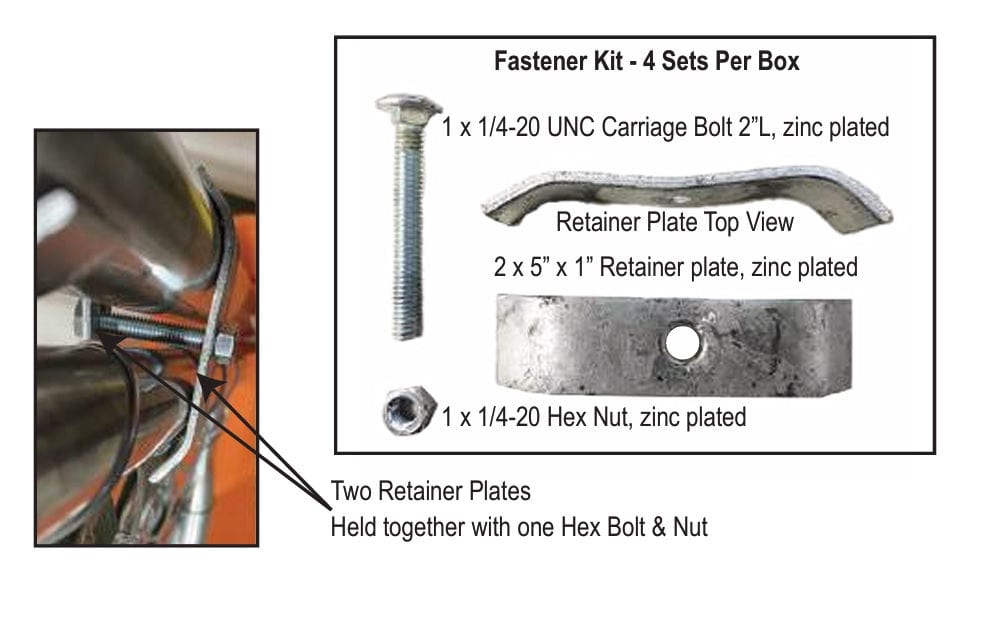

Fastener Kit (Part #570)
Includes: 4 hex bolts, 4 nuts, and 8 retainer plates
The fastener kit provides all the necessary hardware for securing fence panels to the posts. All components are corrosion-resistant, making them suitable for outdoor use in various weather conditions.
This fencing solution is ideal for events, construction sites, parades, or any application where temporary perimeter control is required. Designed for quick installation and reliable performance, our fence system offers a cost-effective way to upgrade standard water-fillable barriers into a more robust security solution.
Note: Always ensure that barricades are fully filled with water and placed on a flat surface before installing fence components for maximum safety and effectiveness.
Crowd control barrier packaging options: assembled or disassembled?
Shipping disassembled - knocked-down (most popular).
Most barriers are packaged 2 in a box, when you receive the shipment you will have to twist the pole in to the base, instructions will be inside the box, usually no tools required.
Shipping assembled.
We can ship posts fully assembled in the factory, there is a small charge for it, but you don’t have to do anything else just unpack it at the location. A small portion of our barriers can only be shipped assembled.
- Shipping cost to ship SMALL orders (up to 25 posts) assembled will be 2 to 3 times higher, because the box will become very large and carriers will charge so called “dimensional weight”. Example: to ship two 25 Lbs post disassembled posts in 1 box, the billable weight is 50 Lbs for both posts, to ship them assembled - each post will be boxed individually in a 42x15x15" box, each box actual weight is 26 Lbs, but the “dimensional” - billable weight is 57 Lbs each, or 114 Lbs.
- Shipping cost to ship LARGE orders (25 or more assembled posts) will be virtually the same. Large heavy orders are being shipped using the most economical method - LTL, boxes are shipped on pallets, the dimensional weight is not applicable in this case. For more details click here
Notes:
- Large order shipping cost has to be calculated and quoted manually after you place your order.
- We can always use your carrier to ship, the shipping charge from us will be $0, you will be charged by your carrier depending to your rates.
"Free Shipping" packaging options:
Products that are sold with “Free shipping” are shipped “Knocked-down”, if you select “Assembled” a shipping charge will be added in addition to the $9 packaging fee. If your order is for 25 post or more and ships LTL, no extra shipping is charged. For more packaging information click here<- Return to main page "Shipping-and-Returns"
