Water-filled Barricade HYDROCADE TL-3 Longitudinal Channelizing Device 32"H x 72"L (MDPE)

Original price $369.00 - Original price $369.00
Original price
$369.00
$369.00 - $369.00
Current price $369.00 Ships from Chicago
SKU: HYDROCADE
Vendor: Plasticade

Plasticade Hydrocade™ Water-Filled Barricade – TL-3 MASH Longitudinal Channelizing Device

The Plasticade Hydrocade™ Water Barricade System is a 72" long x 32" high, water-filled longitudinal channelizing device (LCD) for work zones, road construction, events and pedestrian routing. Each unit ships empty at just 67 lbs, then fills on site with 81 gallons of water for a deployed weight of 745 lbs. Hydrocade is crash tested for TL-3 MASH acceptance (submitted to FHWA), meets MUTCD standards, and is made in the USA from durable, impact-resistant medium-density polyethylene.

Available from BarrierHQ.com in 6 versions: Safety Orange or White, with no sheeting, Engineer Grade or High-Intensity Prismatic Grade striped retroreflective sheeting. Choose your color and sheeting with the options above.

Why Contractors Choose the Hydrocade

  • Crash tested, standards compliant: Crash tested for TL-3 MASH acceptance (submitted to FHWA) and meets MUTCD standards for longitudinal channelizing devices.
  • Light to ship, heavy when deployed: 67 lbs empty; 745 lbs LCD deployed weight when filled with 81.24 gallons (307.5 L) of water. Every unit is leak tested.

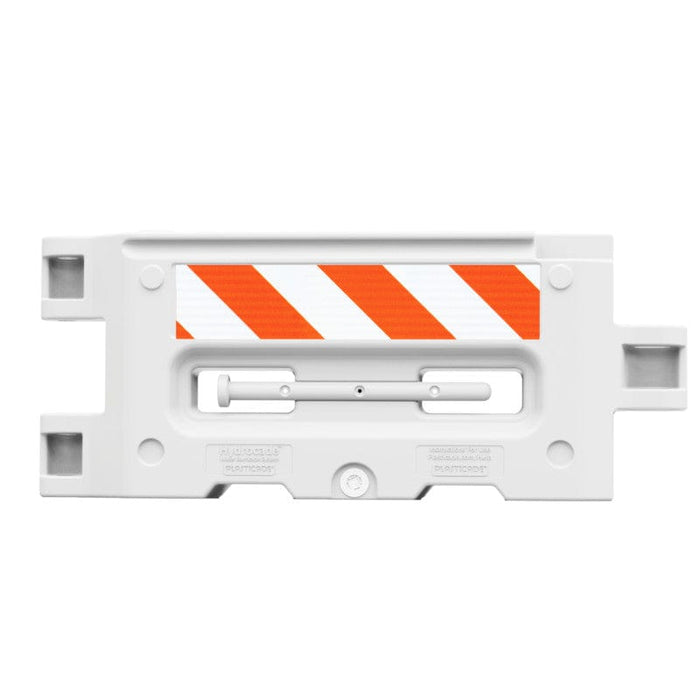

  • No more missing connector pins: The connector pins snap into the barricade center for storage and transport, so they travel with the unit. Pins are sturdy and built with strength-enhancing channels.
  • Up to 50% more units per truckload: A unique stacking design fits 8 units per pallet and 200 units per 53' truck. Stacking lugs keep stacked units from sliding.
  • Conforms to any roadway design: Connected units turn 90°, adjust up to a 6° incline over curbs and up to 3° for ditches.
  • Pedestrian friendly: The flat, obstruction-free front side eliminates pedestrian trip hazards.
  • Built-in handling and visibility features: Two forklift access areas, a light shelf for a standard barricade light, and 44" x 8" (111.8 cm x 20.3 cm) areas for retroreflective striped sheeting on both sides.
  • Fence-ready: Accepts optional Hydrocade fence panels in place of the connector pins to create a 7 ft fence line.

Plasticade Hydrocade water-filled barricade features: stacking lugs, large fill hole, 81 gallon fill point, light ledge, forklift access points, drain holes and connector pin storage

How the Hydrocade Works

Set Up

Plasticade Hydrocade connector pin HYD-PIN joining two barricades

  1. Position and connect: Place units next to each other, remove the pin from its storage position and use it to join each unit to the next in line.
  2. Check the drain plugs: Make sure the drain plugs are secured; use a drain wrench (HYD-WRENCH) to tighten.
  3. Remove the fill caps.
  4. Fill: Fill each unit to full capacity, 81.24 gallons.
  5. Reattach the fill caps to prevent water loss.

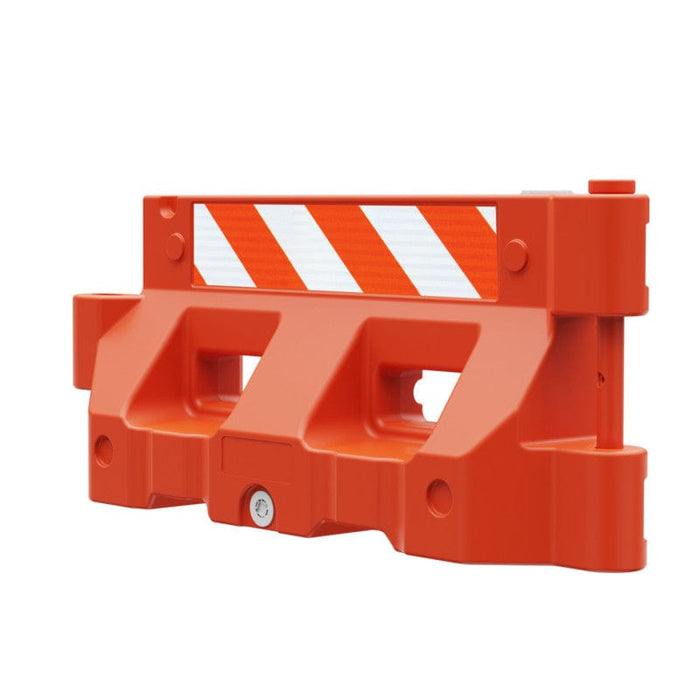

Orientation: the flat side (front) faces pedestrians; the back side faces vehicles and construction.

Removal and Draining

  1. Remove the fill caps.
  2. Remove the drain plug and let the water drain out completely.
  3. Reattach the fill caps and drain plugs.
  4. The barricades can now be moved.

Removing and tightening the drain plugs requires a drum bung/plug wrench that fits 3/4" and 2" bungs (not included). It is available as HYD-WRENCH.

Connected Plasticade Hydrocade barricades adjust to uneven ground: up to 6 degree incline over curbs and up to 3 degree adjustment for ditches

Important: The Hydrocade is a longitudinal channelizing device, not a barrier. It should not be used where a re-directive device is required or desired. Failure to comply with the deployment instructions may lead to damage or pose a risk of injury or death to pedestrians and vehicle occupants.

Common Uses

  • Highway and road work zones: lane closures, lane shifts and channelizing traffic around construction.
  • Pedestrian channelizing: sidewalk closures and temporary walkways, with the flat side facing pedestrians.
  • Events and crowd control: temporary crowd lines and queuing at public events.
  • Perimeter and site delineation: construction sites, parking areas and temporary access routes. Add fence panels to create a 7 ft fence line.

Colors and Sheeting Options

The Hydrocade comes in standard Safety Orange or White. Each color can be ordered plain or with retroreflective striped sheeting applied to the 44" x 8" sheeting areas on both sides:

  • No sheeting: plain barricade (HYD-O-KIT orange, HYD-W-KIT white).
  • Engineer Grade striped sheeting (EGLR): engineer grade retroreflective striped sheeting on both sides (HYD-O-EGLR-KIT, HYD-W-EGLR-KIT).
  • High-Intensity Prismatic Grade striped sheeting (HIPLR): high-intensity prismatic grade retroreflective striped sheeting on both sides (HYD-O-HIPLR-KIT, HYD-W-HIPLR-KIT).

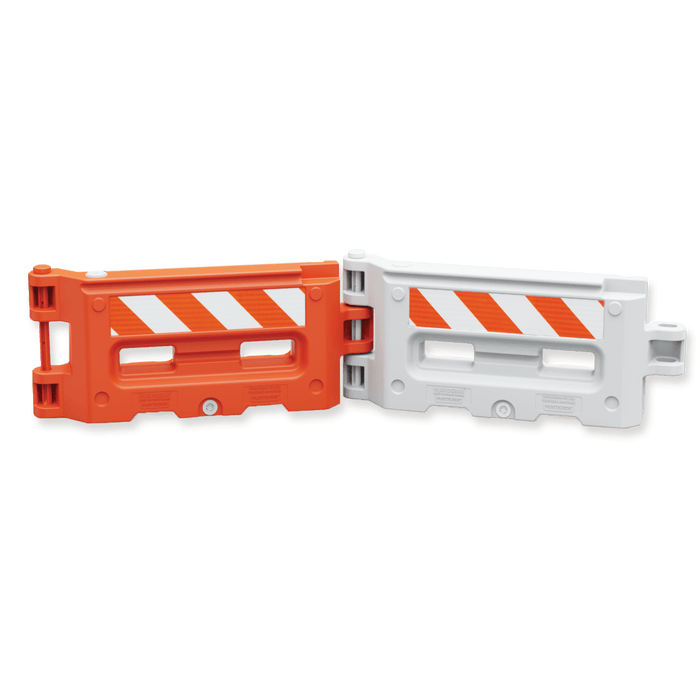

Plasticade Hydrocade water-filled barricade in 6 versions: orange or white, with no sheeting, Engineer Grade or High-Intensity Prismatic Grade striped sheeting (HYD-O-KIT, HYD-O-EGLR-KIT, HYD-O-HIPLR-KIT, HYD-W-KIT, HYD-W-EGLR-KIT, HYD-W-HIPLR-KIT)

Custom colors are available from the manufacturer on request.

Hydrocade Specifications

Manufacturer Plasticade
Device type Water-filled longitudinal channelizing device (LCD)
Crash testing Crash tested for TL-3 MASH acceptance, submitted to FHWA. Meets MUTCD standards.
Composition Medium-density polyethylene (MDPE)
Overall dimensions 79" L x 17.5" W x 32" H (200.7 cm L x 44.5 cm W x 81.3 cm H)
Connected length 72" (182.9 cm) per unit in a connected line
Top width 8" (20.32 cm)
Empty weight 67 lbs (30.39 kg)
Water capacity 81.24 gallons (307.5 L)
LCD deployed weight 745 lbs (338 kg)
Wall thickness 0.25" +/- 20% (0.635 cm)
Connector pin 1.8 lbs (0.82 kg). Replacement parts: HYD-PIN-W (white), HYD-PIN-O (orange)
Sheeting area 44" x 8" (111.8 cm x 20.3 cm) on both sides
Sheeting options None, Engineer Grade or High-Intensity Prismatic Grade retroreflective striped sheeting
Colors Orange and white (custom colors available)
Fill cap / drain plugs 3" fill cap (Part #8374); drain plugs on both sides (Part #8219, cap & seal)
Barricade light Light ledge for a standard barricade light; bolt size 5 1/2" - 13 (Part 8375)
Uneven ground Up to 6° incline over curbs; up to 3° adjustment for ditches; turns 90°
Packaging 8 units per pallet; 200 units per 53' truck
Origin Made in the USA. Patents pending.

Spec correction: the top width is 8" (20.32 cm), per Plasticade's current spec sheet. Some earlier listings showed 18". The overall base width is 17.5".

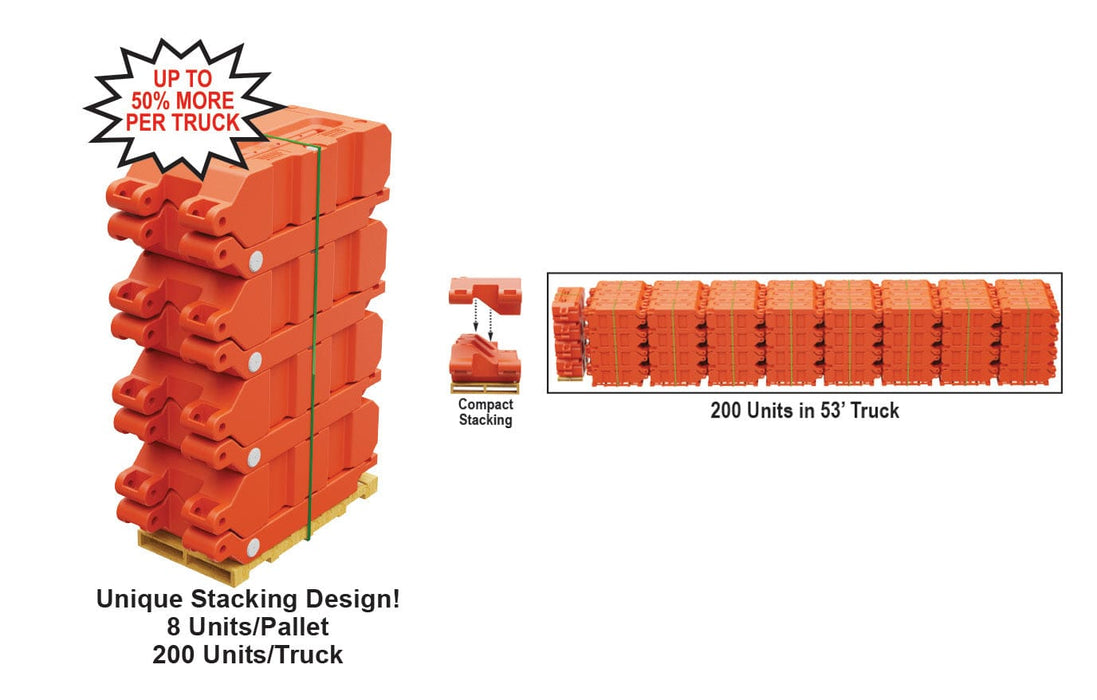

Plasticade Hydrocade compact stacking design: 8 units per pallet, 200 units per 53 ft truck

Add a 7 ft Fence: Hydrocade Fence Panels and Posts

Optional galvanized chain-link fence panels replace the connector pins to turn a Hydrocade line into a 7 ft fence for site security, perimeter control and crowd management.

Hydrocade fence panel system setup in 5 steps: 7 ft fence line on water-filled barricades, 1 panel and 1 post per Hydrocade plus 1 extra post at end of line

How Many Fence Posts Do I Need?

  • Connected line: 1 post per panel + 1 extra post for the last unit in the line. Example: 10 connected Hydrocades = 10 panels + 11 posts.
  • Separate (stand-alone) units: 2 posts per panel. Example: 3 separate Hydrocades = 3 panels + 6 posts.

Fencing notes: Hydrocade with fencing has not been MASH tested. Fencing can only be used when units are placed on level ground, and units must be filled with water while fencing is installed.

Cold-Weather Anti-Freeze Recommendations

For freezing conditions, bulk mix one of the following materials with water using the chart below (approximate amounts per section).

Expected low Calcium Chloride
lbs/section
Calcium Magnesium Acetate (CMA)
lbs/section
Magnesium Chloride
lbs/section
Potassium Acetate
lbs/section
Sodium Chloride
lbs/section
Ethylene or Propylene Glycol
gal/section (ratio)
20° 57 91 51 51 57 12 (17%)
10° 86 125 74 114 68 17 (25%)
0° 103 154 91 143 120 22 (33%)
-10° 125 177 103 171 N/A 26 (39%)
-20° 137 188 114 194 N/A 30 (45%)
  • Consult local ordinances before choosing an anti-freeze solution.
  • The amounts are approximate and should not be relied upon as a guarantee against freezing.
  • Clean up spills thoroughly, as the mixtures can be slippery. Rinse the area with plenty of water and apply sand to reduce the risk of slipping.

Shipping

  • Hydrocade pallet quantity: 8 units. Truckload quantity: 200 units.
  • Pallet size: 82" x 32" x 102"H
  • Fence panel pallet quantity: 41 units, pallet size 73" x 51"
  • Fence post pallet quantity: 40 units, pallet size 96" x 48"
  • Fencing panels and posts truckload quantity: 320 panels (8 pallets), 321 posts (8 pallets)
