Truckload - 200 (1,200 ft) Water-filled Barricades HYDROCADE TL-3 Longitudinal Channelizing Device

Truckload - 200 (1,200 ft) Water-filled Barricades HYDROCADE TL-3 Longitudinal Channelizing Device

$69,900.00 - $69,900.00
$69,900.00
$69,900.00 - $69,900.00
$69,900.00 Ships from Chicago
SKU: HYD-O-KIT-TRUCK
Vendor: Plasticade

Hydrocade™ Water Barricade System – TL-3 Longitudinal Channelizing Device (Truckload)

The Hydrocade™ Water Barricade System is a high-performance longitudinal channelizing device (LCD) that offers superior safety and efficiency for temporary traffic control applications. Crash-tested and engineered to meet TL-3 MASH requirements (submitted to FHWA) and MUTCD standards, this modular barrier system is ideal for construction zones, event perimeters, lane separation, and pedestrian safety.

Truckload Availability

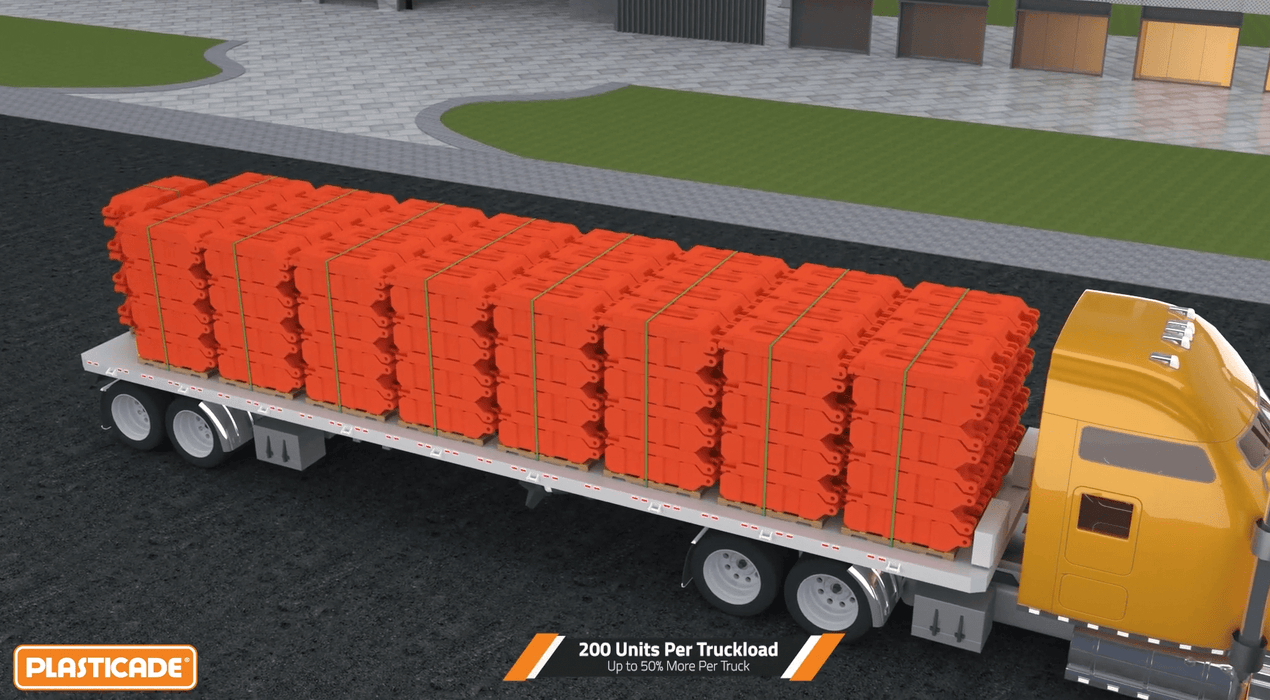

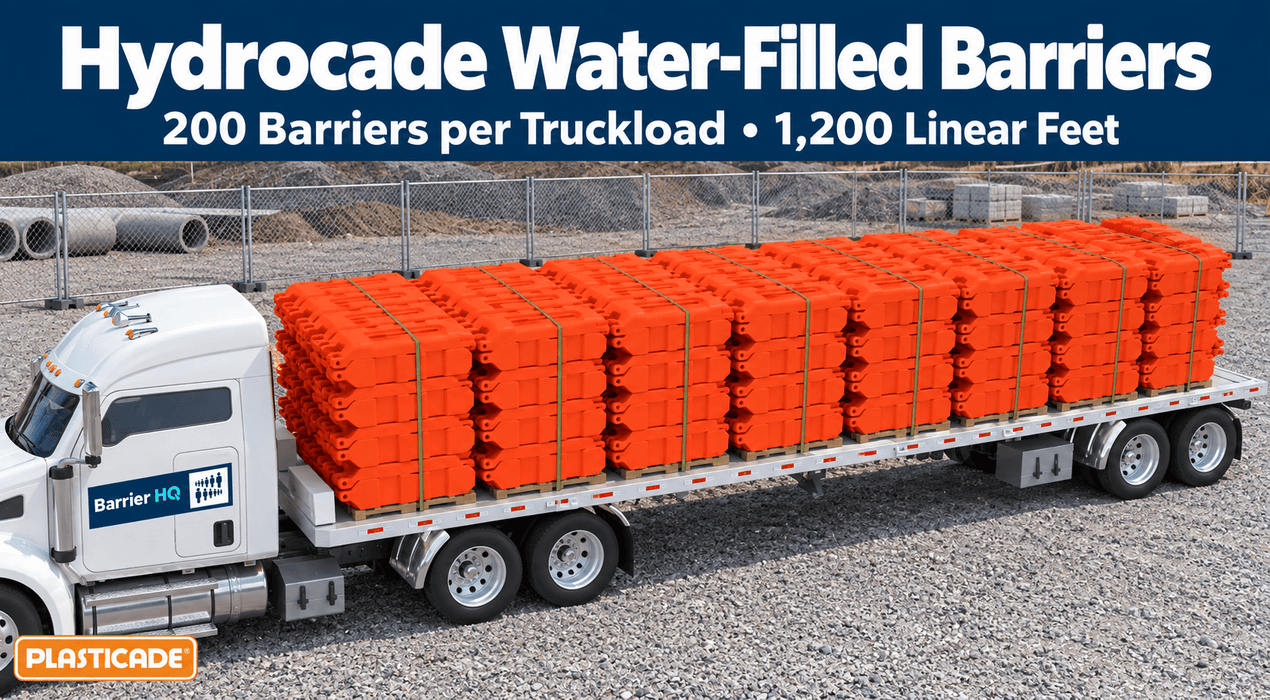

This product is available by truckload for large-scale deployment. Each truckload can carry up to 200 Hydrocade units, with 8 units per pallet, maximizing logistical efficiency and reducing shipping costs.

Key Features

  • Optimized Dimensions: 79" L x 32" H x 17.5" W with a top width of 18". Empty weight: 67 lbs; filled weight: 745 lbs.
  • Space-Saving Stackability: Innovative stacking design accommodates up to 200 units per truckload. Stacking lugs prevent movement during transport.
  • Heavy-Duty Construction: Made from durable, medium-density polyethylene for impact resistance and extended use in harsh environments.
  • Tool-Free Setup: Integrated connector pins snap into the center channel—no loose hardware required for setup or storage.
  • Flexible Configuration: Adjusts to 90° angles and accommodates road curvature up to a 6° incline. Flat sides reduce trip hazards for pedestrian zones.
  • High Visibility: Large 44" x 8" sheeting zones on both sides accept engineer-grade or high-intensity prismatic retroreflective sheeting.
  • Accessory-Ready: Includes light mount shelf, forklift pockets, and compatibility with optional fence panels for crowd control.
  • Leak-Tested: Every unit is tested for watertight performance before shipping.
  • Made in the USA: Designed and manufactured in the United States; patents pending.

Specifications

  • Material: Medium-density polyethylene with 16-gauge galvanized connector pins
  • Dimensions: 79" L x 17.5" W x 32" H (200.7 cm x 44.5 cm x 81.3 cm)
  • Weight: 67 lbs empty; 745 lbs filled
  • Water Capacity: 81.24 gallons (307.5 liters)
  • Color Options: Standard orange and white; custom colors available
  • Reflective Sheeting: Engineer-grade or high-intensity prismatic sheeting

Applications

Ideal for highway lane delineation, work zone protection, pedestrian detours, special events, and crowd management. Note: The Hydrocade™ is not a redirective crash barrier and should only be used where redirective performance is not required.

Optional Accessories

HYD-WRENCH – Compatible drum plug wrench (sold separately) for tightening and removing 3/4" and 2" drain bungs.

Order in bulk by truckload to save time and freight costs while ensuring your traffic control project is fully equipped.

Shipping & Pallet Details

  • Hydrocade Units: 8 units per pallet; 200 units per truckload
  • Hydrocade Pallet Size: 82" L x 32" W x 102" H
  • Fence Panel Pallet Quantity: 41 panels per pallet; 320 panels per truckload (8 pallets)
  • Fence Post Pallet Quantity: 40 posts per pallet; 321 posts per truckload (8 pallets)
  • Fence Panel Pallet Size: 73" L x 51" W
  • Fence Post Pallet Size: 96" L x 48" W

Crowd control barrier packaging options: assembled or disassembled?

Shipping disassembled - knocked-down (most popular).

Most barriers are packaged 2 in a box, when you receive the shipment you will have to twist the pole in to the base, instructions will be inside the box, usually no tools required.

Shipping assembled.

We can ship posts fully assembled in the factory, there is a small charge for it, but you don’t have to do anything else just unpack it at the location. A small portion of our barriers can only be shipped assembled.

  • Shipping cost to ship SMALL orders (up to 25 posts) assembled will be 2 to 3 times higher, because the box will become very large and carriers will charge so called “dimensional weight”. Example: to ship two 25 Lbs post disassembled posts in 1 box, the billable weight is 50 Lbs for both posts, to ship them assembled - each post will be boxed individually in a 42x15x15" box, each box actual weight is 26 Lbs, but the “dimensional” - billable weight is 57 Lbs each, or 114 Lbs.
  • Shipping cost to ship LARGE orders (25 or more assembled posts) will be virtually the same. Large heavy orders are being shipped using the most economical method - LTL, boxes are shipped on pallets, the dimensional weight is not applicable in this case. For more details click here

Notes:

  • Large order shipping cost has to be calculated and quoted manually after you place your order.
  • We can always use your carrier to ship, the shipping charge from us will be $0, you will be charged by your carrier depending to your rates.

"Free Shipping" packaging options:

Products that are sold with “Free shipping” are shipped “Knocked-down”, if you select “Assembled” a shipping charge will be added in addition to the $9 packaging fee. If your order is for 25 post or more and ships LTL, no extra shipping is charged. For more packaging information click here<- Return to main page "Shipping-and-Returns"
